HYPOID Gear Backlash

WARNING: This page is about a different variant/trim than selected.

Adjust the backlash by turning the side retainers on the left and right side.

ST 18630AA010 WRENCH COMPL RETAINER

Fig 1: Removing Differential Side Retainer Using Wrench COMPL Retainer

Courtesy of SUBARU OF AMERICA, INC.

NOTE: Each time the side retainer rotates by one notch (A), the backlash changes by 0.05 mm (0.0020 in).

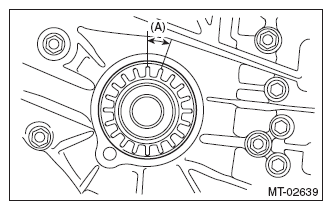

Fig 2: Identifying Side Retainer Rotation (One Notch)

Courtesy of SUBARU OF AMERICA, INC.
