Drive Pinion Shaft Assembly: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the manual transmission assembly from the vehicle. Refer to REMOVAL .
  2. Remove the transfer case together with the extension case assembly. Refer to REMOVAL .
  3. Remove the transmission case. Refer to REMOVAL .
  4. Remove the drive pinion shaft assembly.
    NOTE: Use a hammer handle, etc. to remove if too tight.

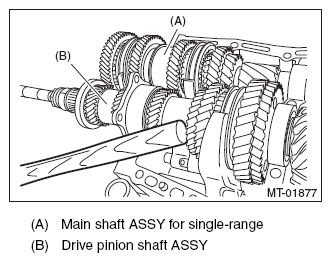

    Fig 1: Removing Drive Pinion Shaft Assembly Using Hammer Handle
    G08582065Courtesy of SUBARU OF AMERICA, INC.
