Clutch Pipe and Hose: Installation

WARNING: This page is about a different variant/trim than selected.

Install in the reverse order of removal.

NOTE: After bleeding air from the clutch fluid, ensure that the clutch operates properly. Refer to CLUTCH FLUID AIR BLEEDING .

Tightening torque:

T: 15 N.m (1.5 kgf-m, 11.1 ft-lb)

Fig 1: Clutch Pipe, Reservoir Tank Hose, Clutch Pipe Grommet And Clamp Or Bolts With Torque Specification

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

T1: 7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

T2: 15 N.m (1.5 kgf-m, 11.1 ft-lb)

T3: 18 N.m (1.8 kgf-m, 13.3 ft-lb)

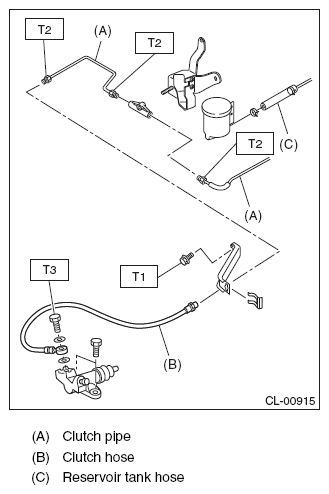

Fig 2: Clutch Pipe, Clutch Hose, Reservoir Tank Hose And Bolts With Torque Specification

Courtesy of SUBARU OF AMERICA, INC.
