Clutch Disc and Cover: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the transmission assembly from the vehicle. Refer to REMOVAL .
Attach the ST on the flywheel.
ST 499747100 CLUTCH DISC GUIDE

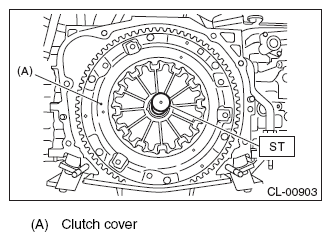

Fig 1: Attaching ST On Flywheel
Courtesy of SUBARU OF AMERICA, INC.
Remove the clutch cover and clutch disc.
NOTE:
- Take care not to allow oil to touch the clutch disc face.
- Do not disassemble the clutch cover or clutch disc.
