Radiator Main Fan and Fan Motor: Installation

WARNING: This page is about a different variant/trim than selected.

Tighten the bolts on the upper side of radiator fan shroud.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Fig 1: Locating Radiator Fan Shroud Upper Side Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Locating Radiator Fan Shroud Upper Side Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install radiator inlet hoses LH and RH to the radiator.

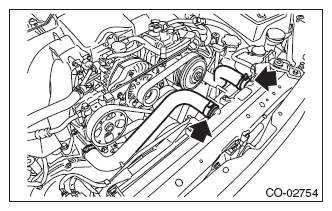

Fig 3: Locating Radiator Inlet Hoses LH And RH To Radiator Mounting Clamps
Courtesy of SUBARU OF AMERICA, INC.
Install the reservoir tank. Refer to INSTALLATION .
Attach the grille bracket.

Fig 4: Locating Grille Bracket Mounting Clips
Courtesy of SUBARU OF AMERICA, INC.
Install the air intake duct. Refer to INSTALLATION .
Lift up the vehicle.
Connect the integrated connector of radiator main fan & fan motor and radiator sub fan & fan motor.

Fig 5: Locating Radiator Main Fan & Fan Motor And Radiator Sub Fan & Fan Motor Integrated Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the under cover. Refer to INSTALLATION .
Lower the vehicle.
Fill engine coolant. Refer to FILLING OF ENGINE COOLANT .
Connect the battery ground terminal.
Install the collector cover.
