Radiator Fan System: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

Radiator Fan System. See appropriate SYSTEM WIRING DIAGRAM article.

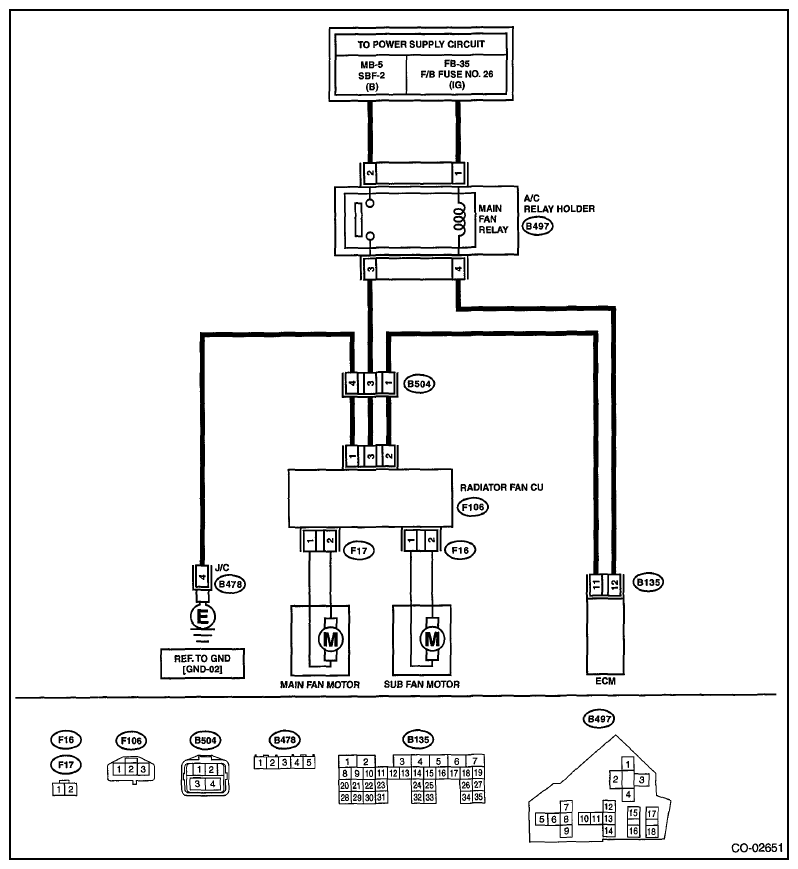

Fig 1: Radiator Fan System - Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.
