Air Cleaner Element: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the ground cable from battery.
Disconnect the power steering oil pressure hose (suction hose) from the clip on the side of air cleaner case (rear).

Fig 1: Identifying Power Steering Oil Pressure Hose (Suction Hose)
Courtesy of SUBARU OF AMERICA, INC.

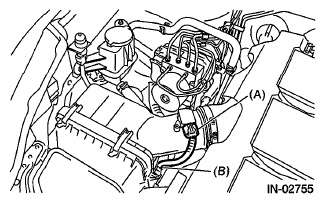

Disconnect the connector (A) from the mass air flow and intake air temperature sensor, and remove the clip (B).

Fig 2: Identifying Mass Air Flow And Intake Air Temperature Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.

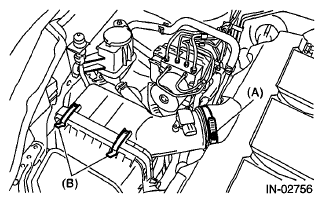

Loosen the clamp (A) which connects the air cleaner case (rear) and air intake boot assembly.
Remove the clip (B) securing the upper side of air cleaner case.

Fig 3: Identifying Air Cleaner Case (Rear) And Air Intake Boot Assembly Connecting Clamp
Courtesy of SUBARU OF AMERICA, INC.

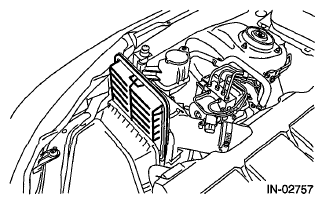

Pull the air cleaner case (rear) backward of the vehicle, and remove the air cleaner element.

Fig 4: Identifying Air Cleaner Case (Rear)
Courtesy of SUBARU OF AMERICA, INC.
