Air Cleaner Case: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the ground cable from battery.
Disconnect the power steering oil pressure hose (suction hose) from the clip on the side of air cleaner case (rear).

Fig 1: Identifying Power Steering Oil Pressure Hose (Suction Hose)
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector (A) from the mass air flow and intake air temperature sensor, and remove the clip (B).

Fig 2: Identifying Mass Air Flow And Intake Air Temperature Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Loosen the clamp (A) which connects the air cleaner case (rear) and air intake boot.
Remove the clip (B) securing the upper side of air cleaner case (rear).

Fig 3: Identifying Air Cleaner Case (Rear) And Air Intake Boot Assembly Connecting Clamp
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake duct. Refer to REMOVAL , Air Intake Duct.
Remove the air cleaner case (rear) and air cleaner element.
Remove the bolts (A) and nuts (B) which secure the air cleaner case (front) to the body.

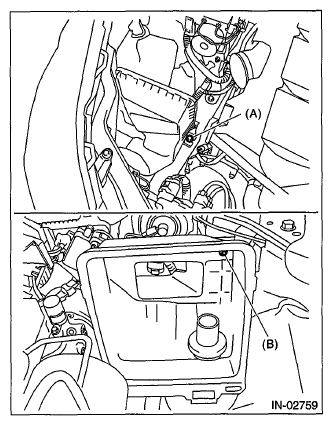

Fig 4: Identifying Bolts And Nuts Securing Air Cleaner Case (Front) To Body
Courtesy of SUBARU OF AMERICA, INC.
Remove the air cleaner case (front).
