Engine harness assembly diagram 2

WARNING: This page is about a different variant/trim than selected.

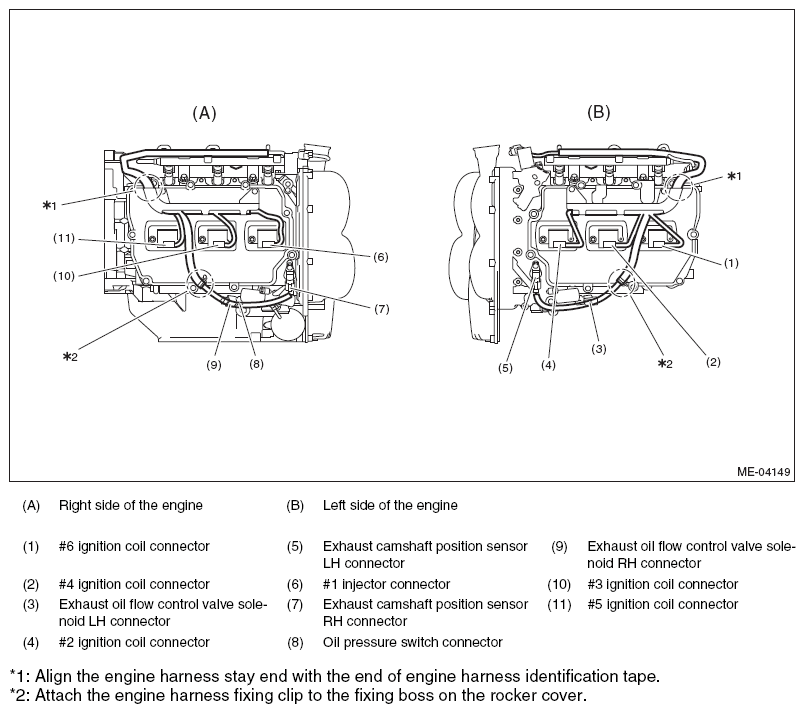

Fig 1: Identifying Engine Harness Assembly And Related Components (Engine Harness Assembly Diagram 2)
G08580888Courtesy of SUBARU OF AMERICA, INC.
