Engine harness assembly diagram 2
Engine harness assembly diagram 2
WARNING:
This page is about a different variant/trim than selected.

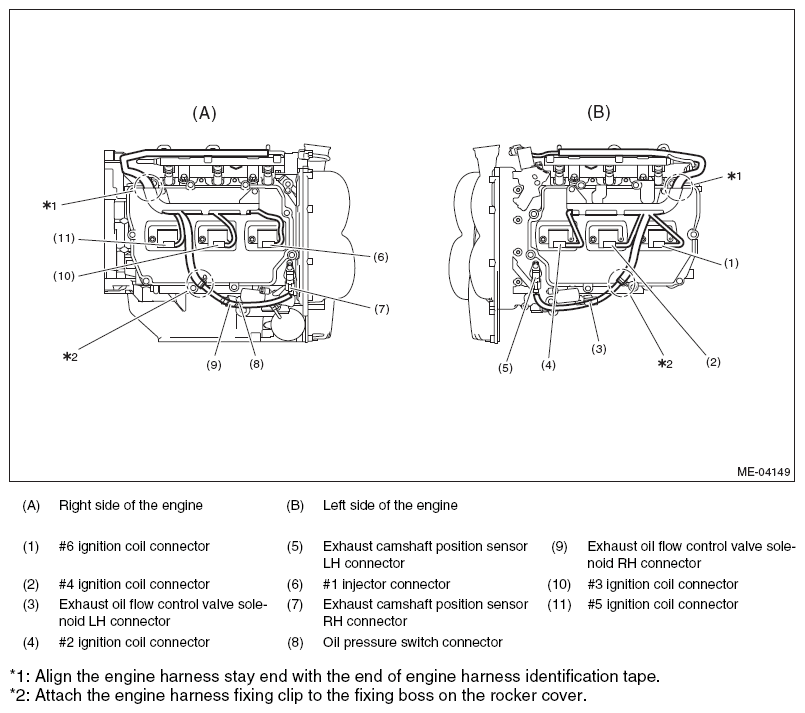

Fig 1: Engine Harness Assembly Diagram 2
Courtesy of SUBARU OF AMERICA, INC.
