Section 4 (Engine Mechanical (H6DO))
>>
General Description
>>
Components With Torque Specifications
>>
Engine Harness
>>
Engine harness assembly diagram 1
Engine harness assembly diagram 1
WARNING:
This page is about a different variant/trim than selected.

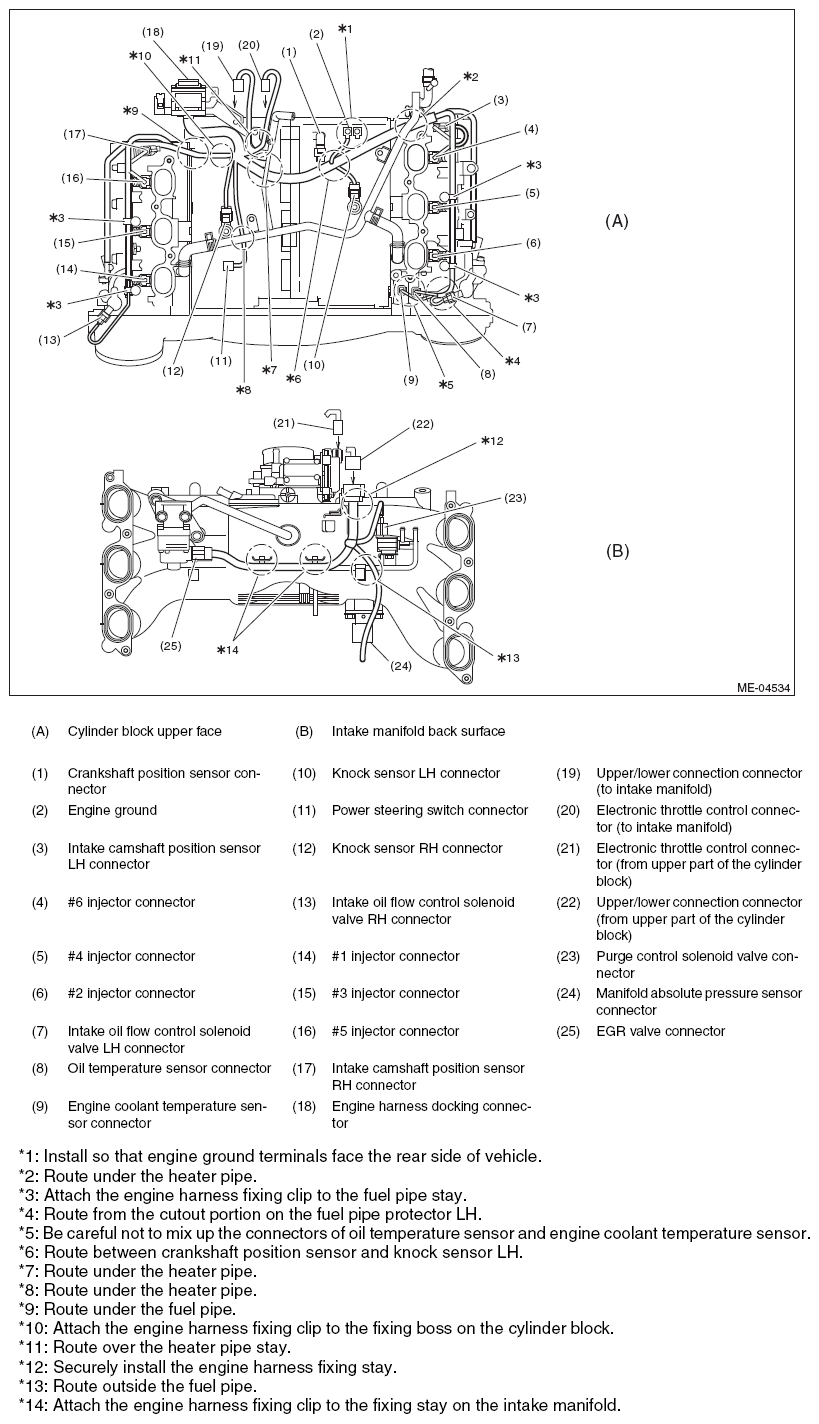

Fig 1: Engine Harness Assembly Diagram 1
Courtesy of SUBARU OF AMERICA, INC.
