Cylinder Head And Valve Assembly

WARNING: This page is about a different variant/trim than selected.

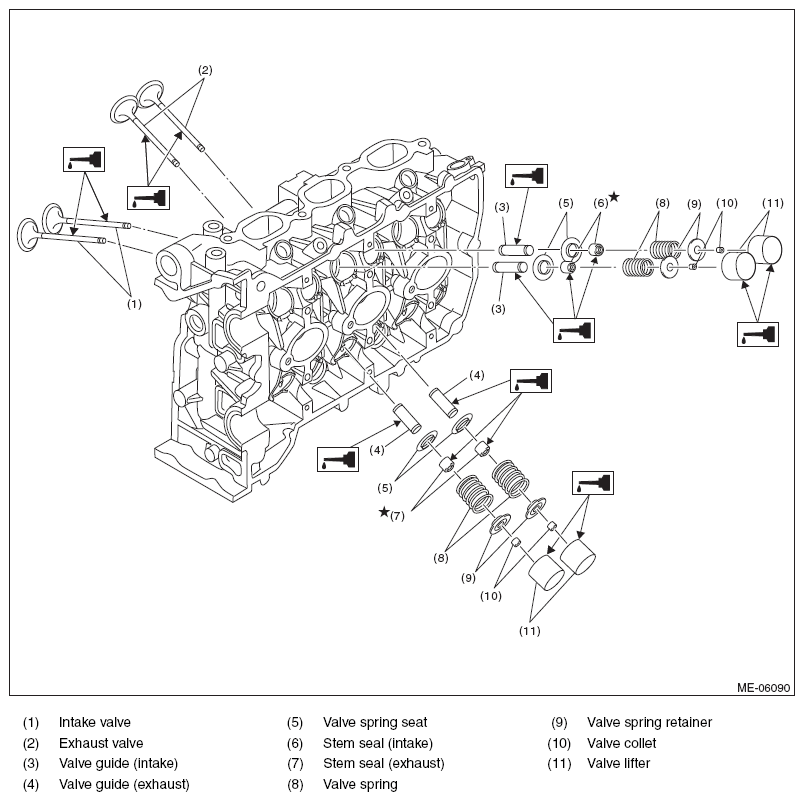

Fig 1: Cylinder Head And Valve Assembly Replacement Components With Torque Specifications
G08581156Courtesy of SUBARU OF AMERICA, INC.
