Cylinder Head And Camshaft

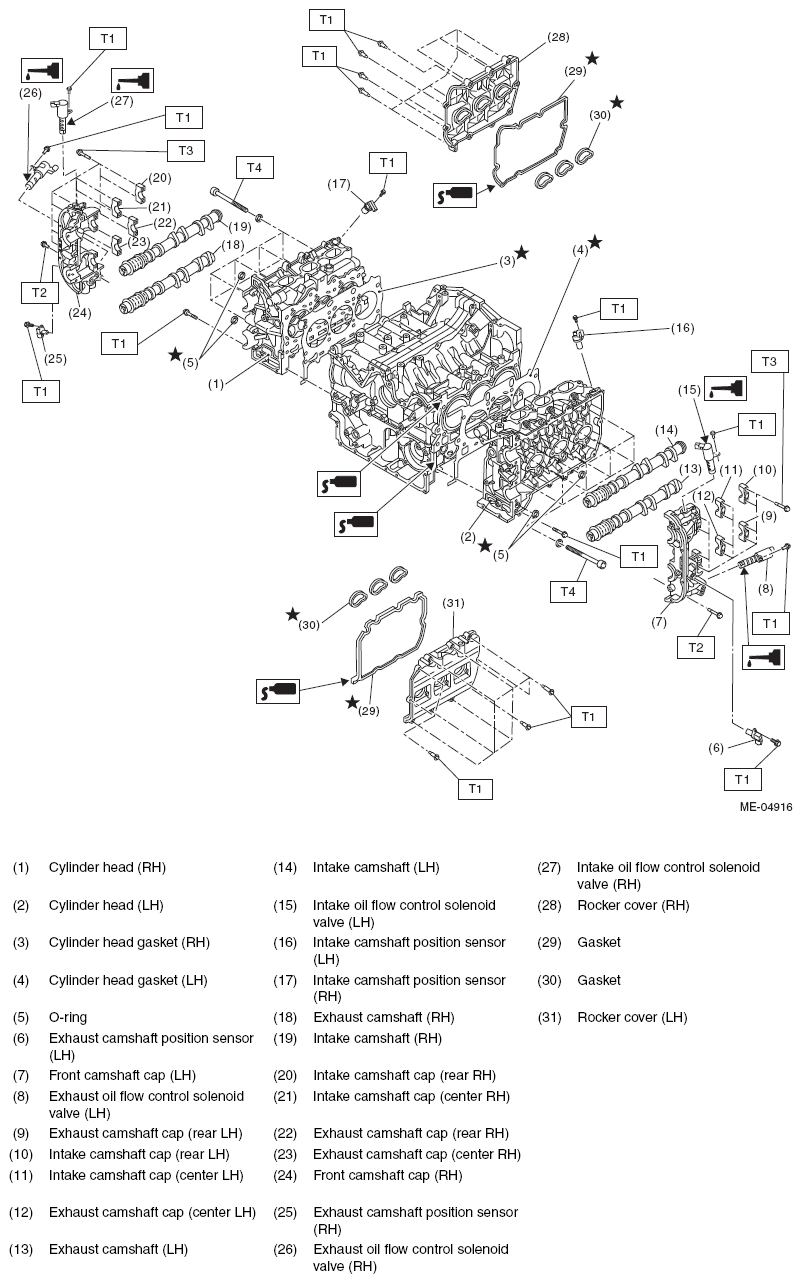

Fig 1: Cylinder Head And Camshaft Replacement Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 9.75 (1.0, 7.2)

T3: 16 (1.6, 11.8)

T4: Refer to  CYLINDER HEAD  .
