Crankshaft And Piston

WARNING: This page is about a different variant/trim than selected.

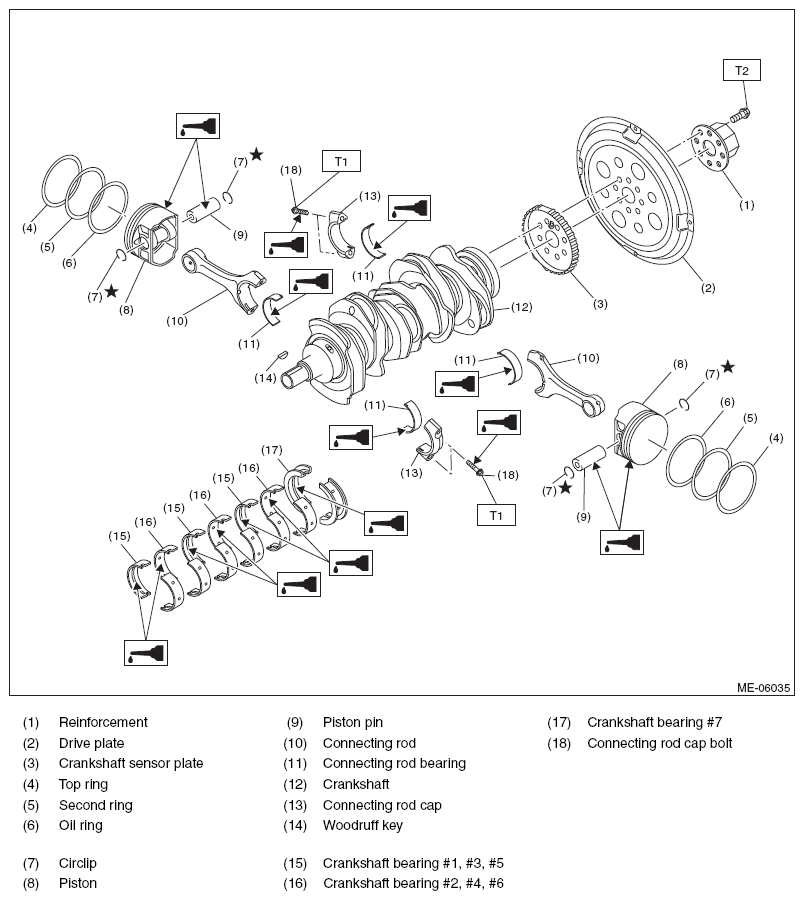

Fig 1: Crankshaft And Piston Replacement Components With Torque Specifications
G08581158Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 60 (6.1, 44.3)

T2: Refer to  INSTALLATION  .
