Chain Cover: Inspection
WARNING: This page is about a different variant/trim than selected.
- Check the chain cover surface for scratches or dents.
- Check for oil leakage on the chain cover mating surface and installation part of crank pulley. If there is an oil leak from the oil seal, perform replacement with a new oil seal.

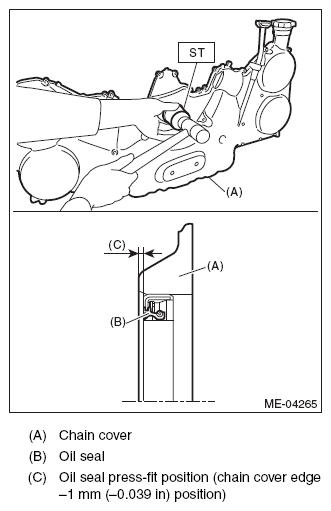

ST 499585700 OIL SEAL GUIDE
Oil seal press-fit position:
Chain cover end face - Position -1 mm
(-0.039 in) from the chain cover end face.
