Oil Pressure System: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

Oil pressure warning system. See appropriate SYSTEM WIRING DIAGRAM article.

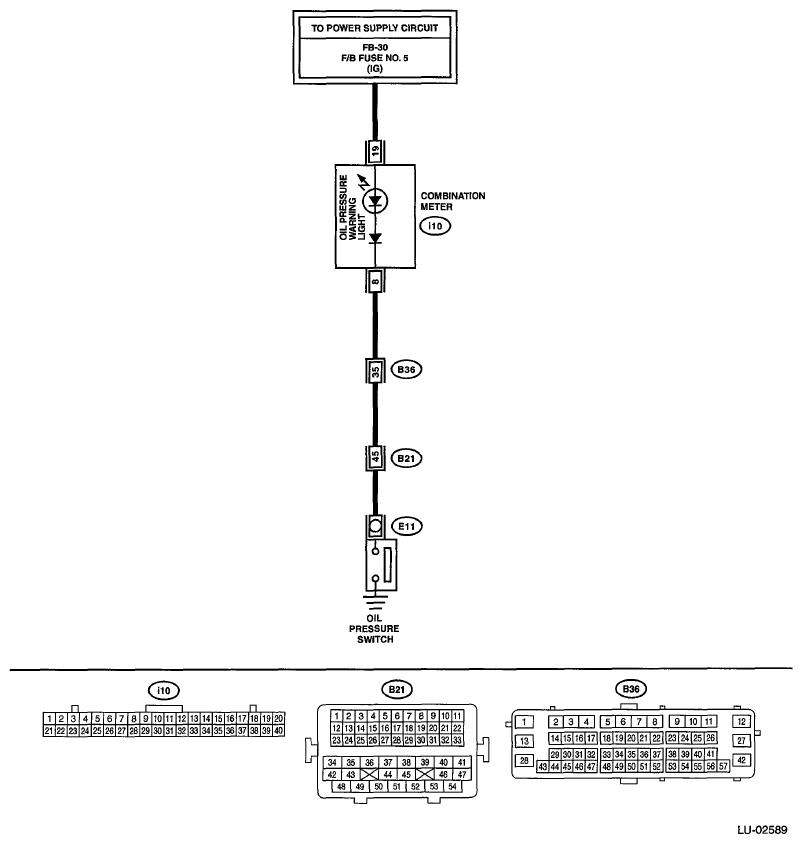

Fig 1: Oil Pressure Warning System - Wiring Diagram
G06651543Courtesy of SUBARU OF AMERICA, INC.
