Purge Control Solenoid Valve: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the collector cover.
NOTE:
Follow the steps below when removing the collector cover.
1. Pull up the two points at the rear (A).
2. Pull up the two points at the front (B) while moving them forward.
Fig 1: Removing Purge Control Solenoid Valve Collector Cover
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the ground cable from battery.
Loosen the clamp (A) which connects the air intake boot assembly.
Loosen the bolt (B) which secures the air intake boot assembly to the collector cover bracket.

Fig 2: Identifying Air Intake Boot Assembly Connecting Clamp
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake boot assembly, and move it to the left side wheel apron.

Fig 3: Identifying Air Intake Boot Assembly
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector and hoses of purge control solenoid valve, and then remove the purge control solenoid valve.

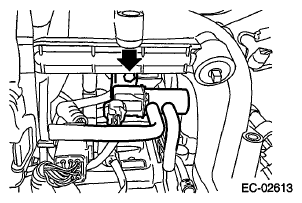

Fig 4: Locating Purge Control Solenoid Valve Connector
Courtesy of SUBARU OF AMERICA, INC.
