Purge Control Solenoid Valve: Installation

Install in the reverse order of removal.

Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

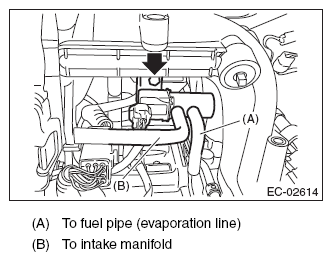

Fig 1: Locating Purge Control Solenoid Valve Connector

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

Clamp (A)

3 N.m (0.3 kgf-m, 2.2 ft-lb)

Bolt (B)

6.5 N.m (0.7 kgf-m, 4.8 ft-lb)

Fig 2: Identifying Air Inlet Hose Mounting Clamp

Courtesy of SUBARU OF AMERICA, INC.
