PCV Valve: Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: Do not remove unless the PCV valve is broken.

Remove the collector cover.
NOTE:
Follow the steps below when removing the collector cover.
1. Pull up the two points at the rear (A).
2. Pull up the two points at the front (B) while moving them forward.
Fig 1: Removing Purge Control Solenoid Valve Collector Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the battery and battery carrier. Refer to REMOVAL .
Disconnect the PCV hose.

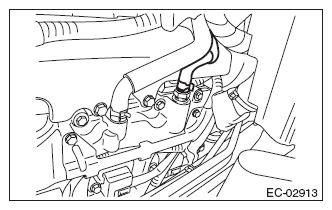

Fig 2: Identifying PCV Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove the PCV valve from rocker cover.

Fig 3: Identifying PCV Valve
Courtesy of SUBARU OF AMERICA, INC.
