Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts

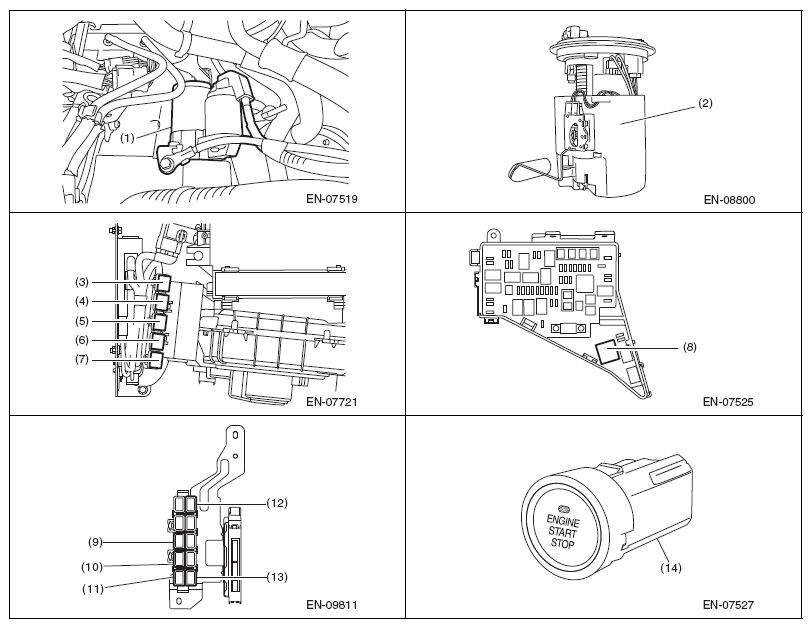

Fig 1: Solenoid Valve, Actuator, Emission Control And Ignition System Components Location (1 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

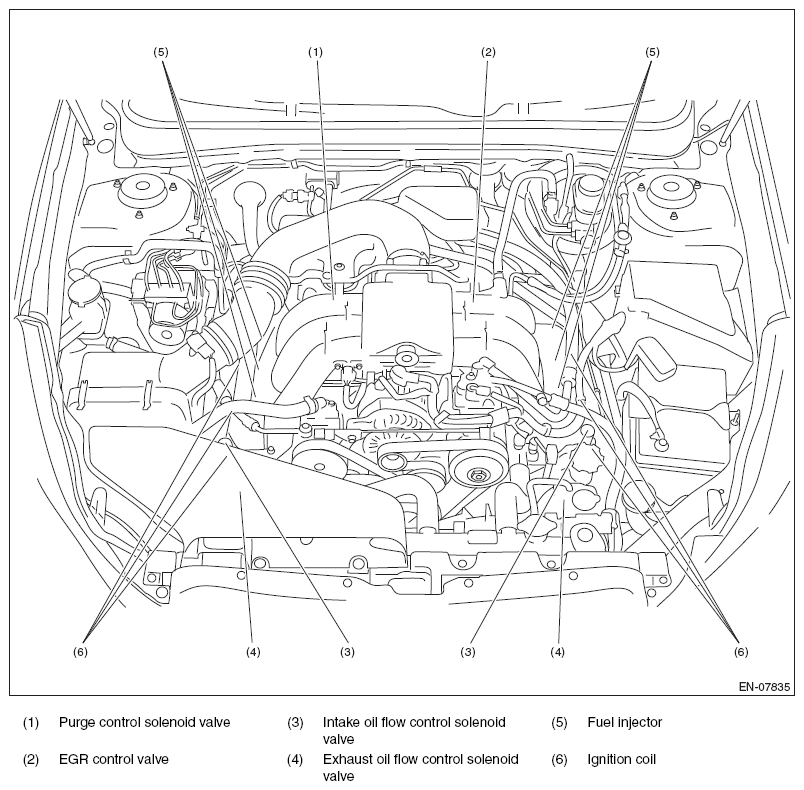

Fig 2: Solenoid Valve, Actuator, Emission Control And Ignition System Components Location (2 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

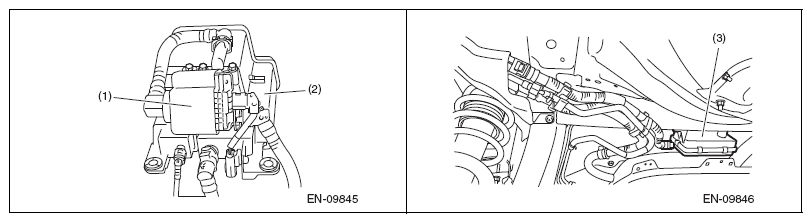

Fig 3: Solenoid Valve, Actuator, Emission Control And Ignition System Components Location (3 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

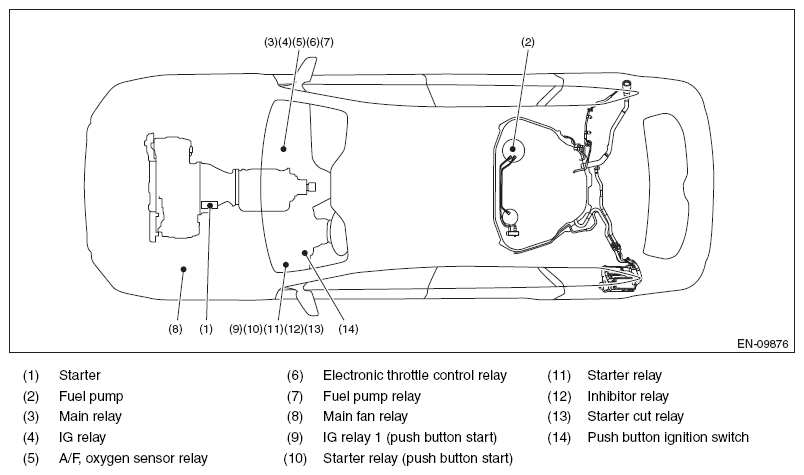

Fig 4: Solenoid Valve, Actuator, Emission Control And Ignition System Components Location (4 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

• Model without push button start

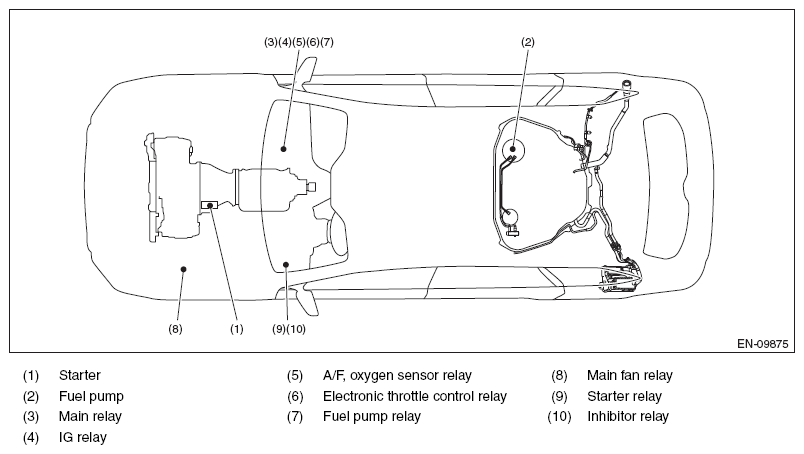

  Fig 5: Solenoid Valve, Actuator, Emission Control And Ignition System Components Location (1 Of 2, Model Without Push Button Start)

  Courtesy of SUBARU OF AMERICA, INC.

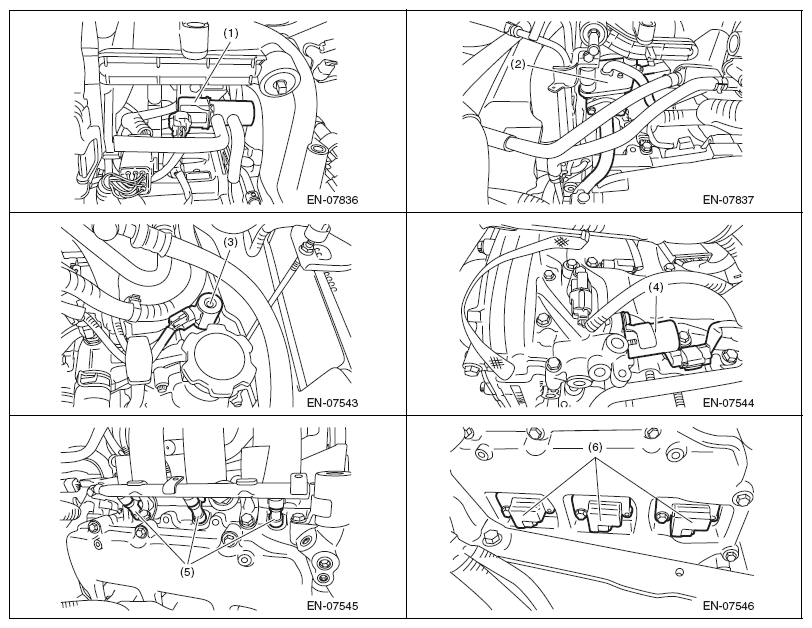

  Fig 6: Solenoid Valve, Actuator, Emission Control And Ignition System Components Location (2 Of 2, Model Without Push Button Start)

  Courtesy of SUBARU OF AMERICA, INC.
• Model with push button start

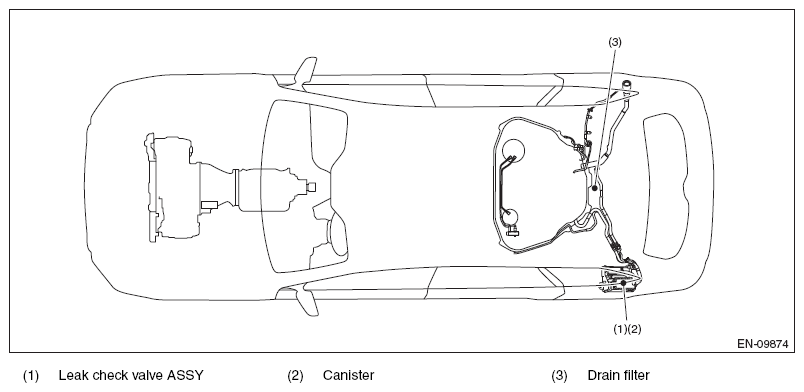

  Fig 7: Solenoid Valve, Actuator, Emission Control And Ignition System Components Location (1 Of 2, Model With Push Button Start)

  Courtesy of SUBARU OF AMERICA, INC.

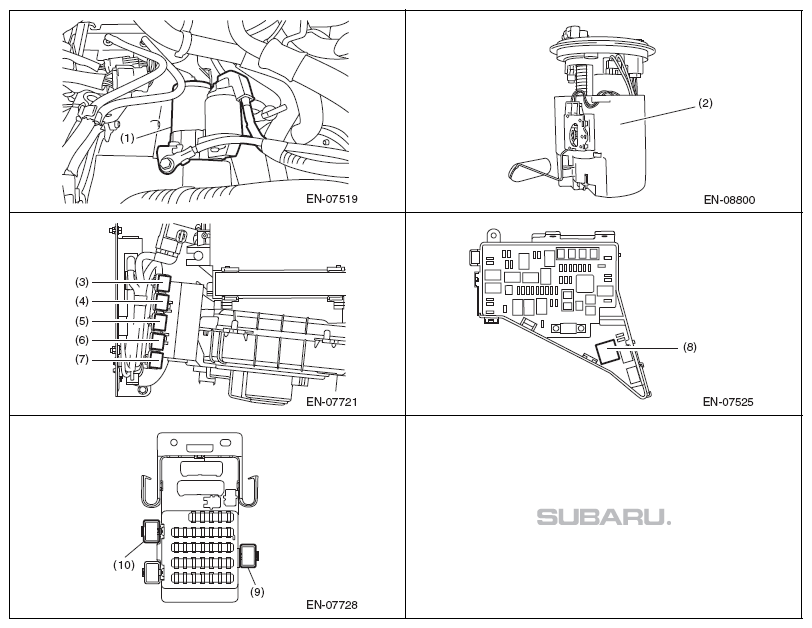

  Fig 8: Solenoid Valve, Actuator, Emission Control And Ignition System Components Location (2 Of 2, Model With Push Button Start)

  Courtesy of SUBARU OF AMERICA, INC.
