Model With Push Button Start: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

Engine electrical system, 3.6 L model (with push button start). See appropriate SYSTEM WIRING DIAGRAM article.

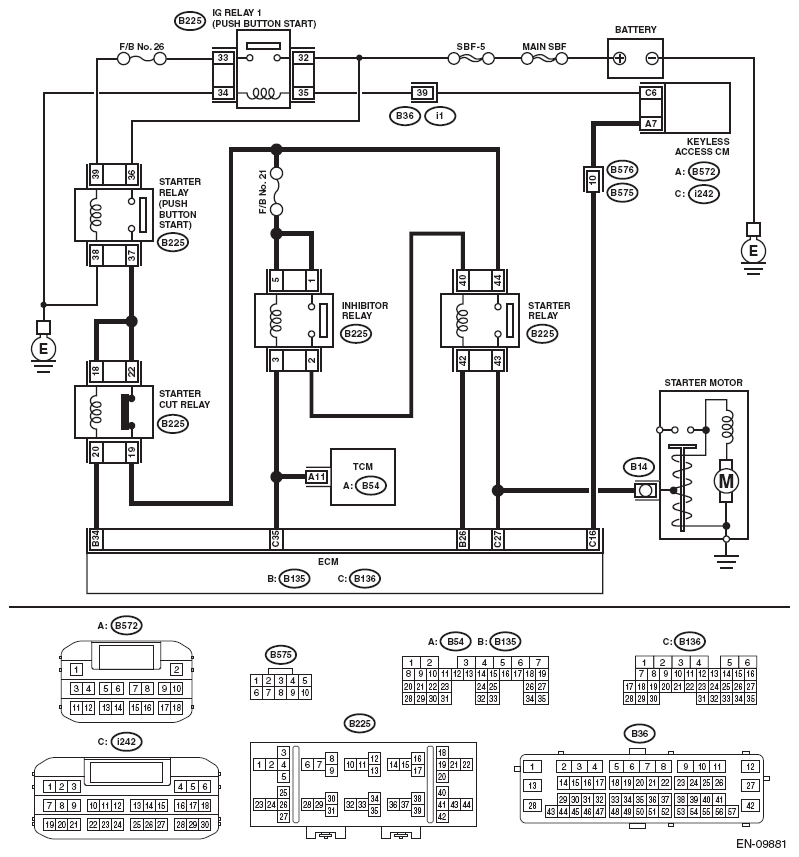

Fig 1: Starter Motor - Wiring Diagram (Model With Push Button Start)

Courtesy of SUBARU OF AMERICA, INC.

Step	Check	Yes	No
1 CHECK HARNESS BETWEEN ECM AND STARTER RELAY CONNECTOR. Turn the ignition to OFF. Disconnect the connector from ECM. Remove the starter relay. Measure the resistance of harness between ECM and starter relay connector. Connector & terminal (B136) No. 27 - (B225) No. 43:	Is the resistance less than 1 Ω?	Go to step 2 .	Repair the open circuit of harness between ECM and starter relay connector.
2 CHECK HARNESS BETWEEN ECM AND STARTER RELAY CONNECTOR. Disconnect the connector from starter motor. Measure the resistance between ECM and chassis ground. Connector & terminal (B136) No. 27 - Chassis ground:	Is the resistance 1 MΩ or more?	Repair the poor contact of ECM connector.	Repair the short circuit to ground in harness between ECM and starter relay connector.
