Air Breather Hose: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the air breather hose.

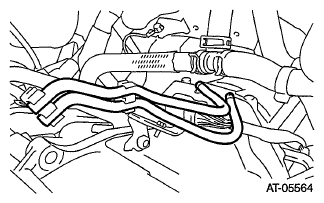

    Fig 1: Identifying Air Breather Hose
    G06652034Courtesy of SUBARU OF AMERICA, INC.
  2. Install the air intake boot. Refer to INSTALLATION .
  3. Install the collector cover.
