Input Clutch Solenoid
WARNING: This page is about a different variant/trim than selected.

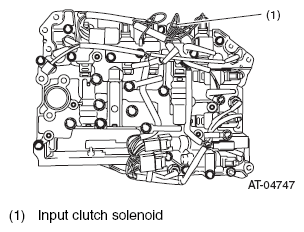

The input clutch solenoid is installed on the control valve and is directly controlled by indicator current from TCM. This solenoid is driven when the input clutch is operated. The indicator current values are constantly corrected by learning control and real-time feedback, contributing shifting quality improvement and prevention of quality aging.
