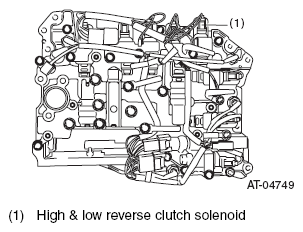

High&Low Reverse Clutch Solenoid
WARNING: This page is about a different variant/trim than selected.
The high&low reverse clutch solenoid is installed on the control valve and is directly controlled by indicator current from TCM. This solenoid is driven when the high&low reverse clutch is operated. The indicator current values are constantly corrected by learning control and real-time feedback, contributing shifting quality improvement and prevention of quality aging.
