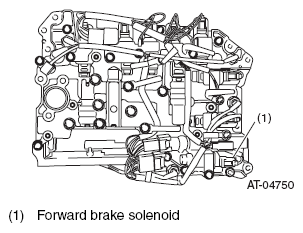

Forward Brake Solenoid
WARNING: This page is about a different variant/trim than selected.
The forward brake solenoid is installed on the control valve and is operated by ON/OFF instructions from TCM. This solenoid is driven when the forward brake is engaged during engine brake operation at 1st or 2nd speed in manual mode.
