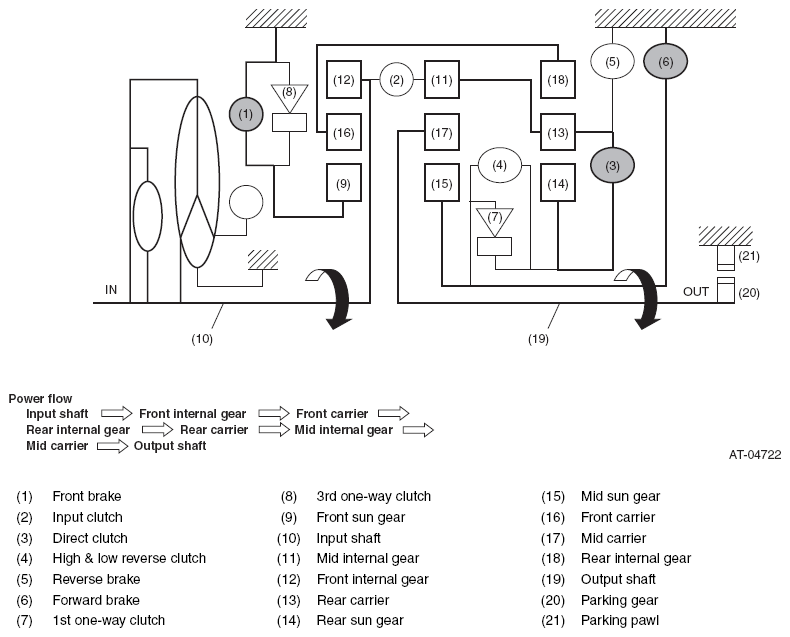

2nd GEAR IN MANUAL MODE
WARNING: This page is about a different variant/trim than selected.
- Forward brake engages and fixes the mid sun gear.
- Front brake operates to fix the front sun gear.
- Direct clutch engages and connects rear carrier and rear sun gear.
- Engine brake works during deceleration.
Courtesy of SUBARU OF AMERICA, INC.
