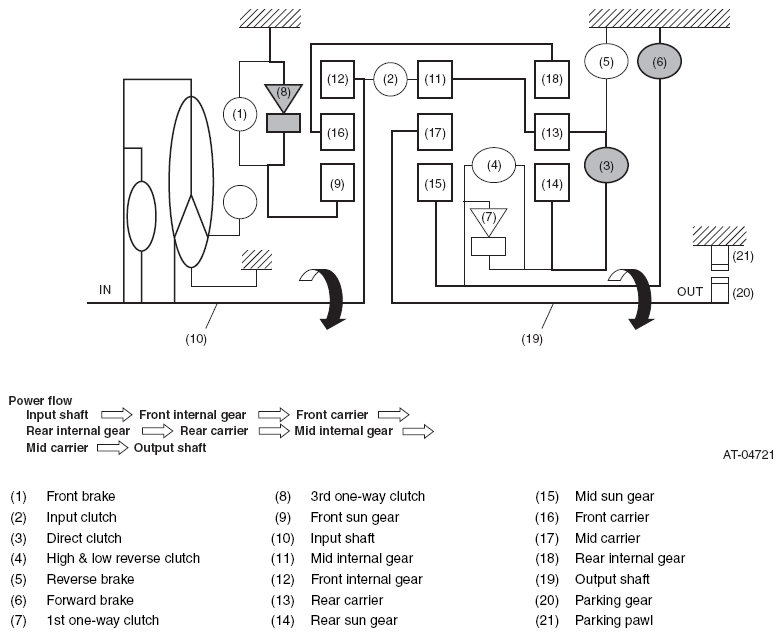

2nd GEAR IN D RANGE
WARNING: This page is about a different variant/trim than selected.
- Forward brake operates to fix the mid sun gear.
- 3rd one-way clutch operates to restrain reverse rotation of front sun gear.
- Direct clutch engages and connects rear carrier and rear sun gear.
- Engine brake works during deceleration.
