1st GEAR IN MANUAL MODE

WARNING: This page is about a different variant/trim than selected.

Front brake operates to fix the front sun gear.
Forward brake operates to fix the mid sun gear.
High&low reverse clutch operates to engage rear sun gear and mid sun gear.
Forward brake operates to fix the mid sun gear.
During deceleration, high&low reverse clutch restrains normal rotation of rear sun gear and engine brake works.

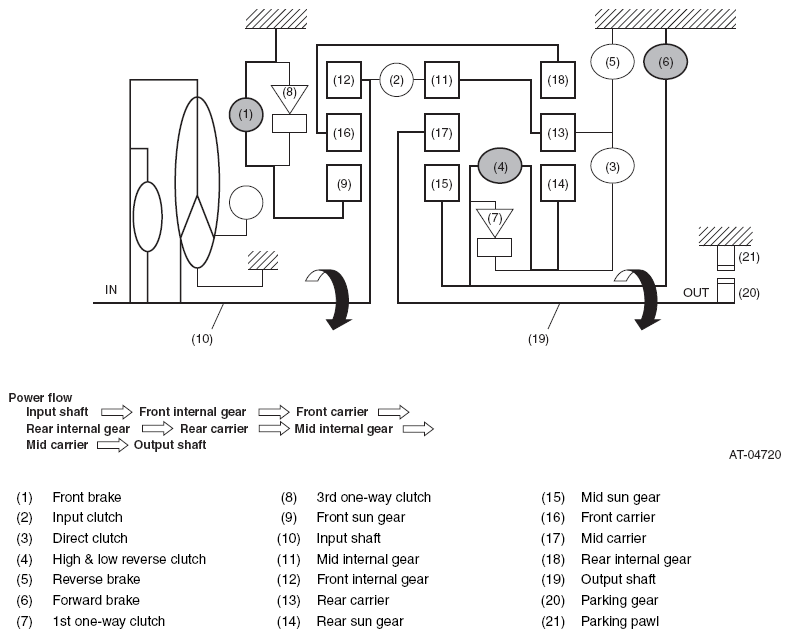

Fig 1: Power Flow Diagram (1st Gear In Manual Mode)

Courtesy of SUBARU OF AMERICA, INC.
