Components With Torque Specifications: Turbocharger

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

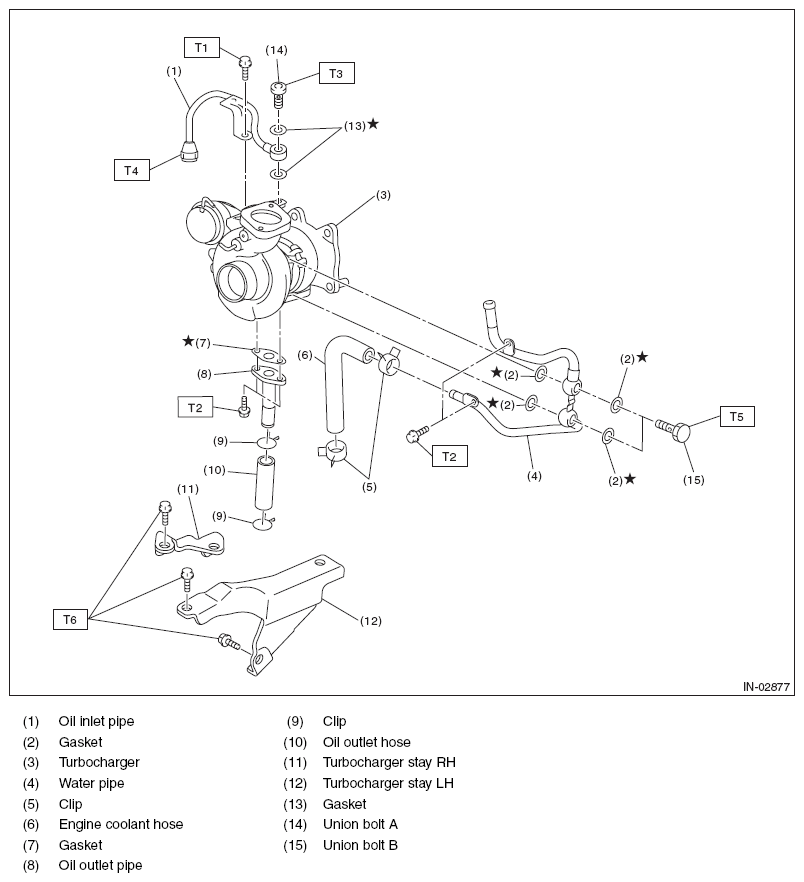

Fig 1: Turbocharger Replacement Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 5 (0.5, 3.7)

T2: 6.5 (0.7, 4.8)

T3: 16 (1.6, 11.8)

T4: 20 (2.0, 14.8)

T5: 23 (2.3, 17.0)

T6: 33 (3.4, 24.3)
