Air Intake Duct: Removal

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Remove the clip which secures air intake duct (rear), and remove the air intake duct (rear).

Fig 1: Locating Air Intake Duct Clip (Rear)
Courtesy of SUBARU OF AMERICA, INC.

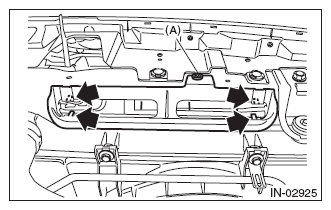

Remove the clip (A) and four claws, and remove the air intake duct (front).

Fig 2: Locating Air Intake Duct Claws (Front)
Courtesy of SUBARU OF AMERICA, INC.
