Air By-pass Valve: Removal
WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the collector cover.

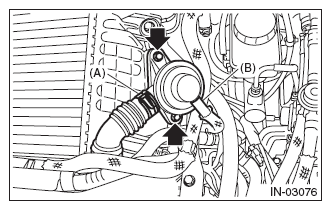

- Disconnect the air by-pass pipe (A) and vacuum hose (B) from the air by-pass valve, and remove the air by-pass valve from the intercooler.
Courtesy of SUBARU OF AMERICA, INC.
