Air Cleaner Case: Installation

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Install the bolt (A) and nut (B) which secure the air cleaner case (front) to the body.
Tightening torque: Bolt (A) 6 N.m (0.6 kgf-m, 4.4 ft-lb)

Nut (B) 7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Fig 1: Identifying Bolt And Nut Which Secure Air Cleaner Case
Courtesy of SUBARU OF AMERICA, INC.
Install the air cleaner case (rear) and air cleaner element.
NOTE: When installing the air cleaner case (rear), align the protrusion of the air cleaner case (rear) to the hole on the air cleaner case (front) to install.

Fig 2: Aligning Protrusion Of Air Cleaner Case (Rear) To Hole On Air Cleaner Case
Courtesy of SUBARU OF AMERICA, INC.
Install the clips (B) to the air cleaner case (front), then tighten the clamp (A) that connects the air cleaner case (rear) to the air intake boot.
Tightening torque:

Clamp (A) 3 N.m (0.3 kgf-m, 2.2 ft-lb)

Fig 3: Identifying Clamp And Air Cleaner Case (Front) Clips
Courtesy of SUBARU OF AMERICA, INC.
Connect the connector (A) to the mass air flow and intake air temperature sensor and secure the harness with clip (B).

Fig 4: Identifying Mass Air Flow And Intake Air Temperature Sensor Connector And Clip
Courtesy of SUBARU OF AMERICA, INC.
Connect the power steering oil pressure hose (suction hose) to the clip on the side of air cleaner case (rear).

Fig 5: Identifying Power Steering Oil Pressure Hose (Suction Hose)
Courtesy of SUBARU OF AMERICA, INC.
Install the air intake duct (rear). < Refer to INSTALLATION , Air Intake Duct.>
Connect the battery ground terminal.

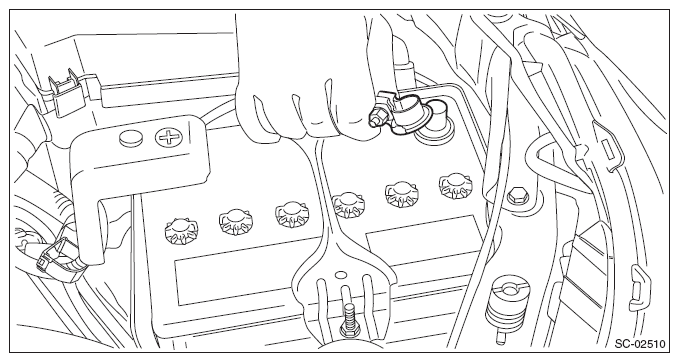

Fig 6: Connecting Battery Ground Terminal
Courtesy of SUBARU OF AMERICA, INC.
