Diagnostic Procedure with Cancel Code: 14: Wiring Diagram

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Cruise Control System< Refer to SYSTEM WIRING DIAGRAM, Cruise Control System. >

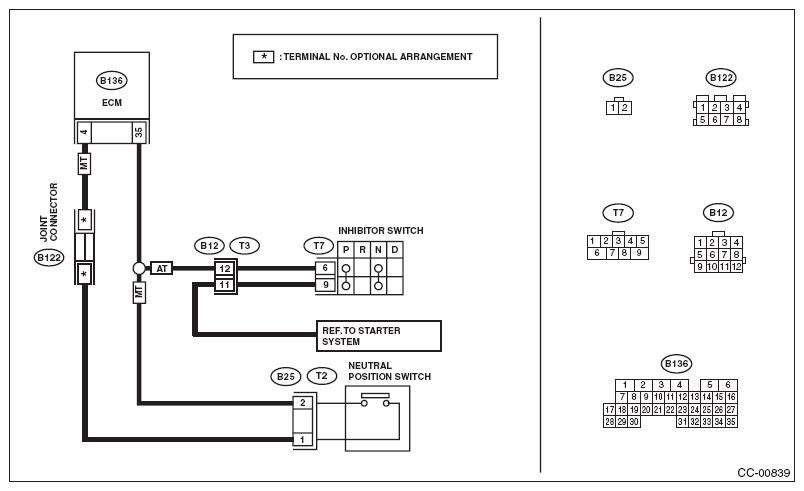

Fig 1: Cruise Control System - Wiring Diagram (When Neutral Position Switch Related Malfunction Occurs)

Courtesy of SUBARU OF AMERICA, INC.

Step	Check	Yes	No
1 CHECK TRANSMISSION TYPE.	Is the transmission type MT?	Go to step 5 .	Go to step 2 .
2 CHECK INHIBITOR SWITCH. Turn the ignition switch to OFF. Disconnect the inhibitor switch harness connector. Turn the ignition switch to ON. Measure the voltage between harness connector terminal and chassis ground. Connector & terminal (T7) No. 6 (+) - Chassis ground (-):	Is the voltage approx. 10 V or more?	Go to step 3 .	Check for open or short circuit in the harness between inhibitor switch and ECM.
3 CHECK INHIBITOR SWITCH CIRCUIT. Turn the ignition switch to OFF. Disconnect the starter motor connector. Turn the ignition switch to ON. Measure the resistance between inhibitor switch harness connector terminal and starter motor. Connector & terminal (T7) No. 9 - Starter motor:	Is the resistance less than 10 Ω?	Repair the harness.	Go to step 4 .
4 CHECK INHIBITOR SWITCH. Remove and check the inhibitor switch.< Refer to INSPECTION , Inhibitor Switch. >	Is the inhibitor switch working normal?	Replace the ECM.< Refer to ENGINE CONTROL MODULE (ECM) . >	Replace the inhibitor switch.
5 CHECK NEUTRAL POSITION SWITCH CIRCUIT. Turn the ignition switch to OFF. Disconnect the neutral position switch harness connector. Turn the ignition switch to ON. Measure the voltage between harness connector terminal and chassis ground. Connector & terminal (B25) No. 2 (+) - Chassis ground (-):	Is the voltage approx. 10 V or more?	Go to step 6 .	Check for open or short in the harness between neutral position switch and ECM.
6 CHECK NEUTRAL POSITION SWITCH CIRCUIT. Turn the ignition switch to OFF. Measure resistance between harness connector terminal of neutral position switch and chassis ground. Connector & terminal (B25) No. 1 - Chassis ground:	Is the resistance less than 10 Ω?	Go to step 7 .	Repair the harness.
7 CHECK NEUTRAL POSITION SWITCH. Remove and check the neutral position switch.< Refer to INSPECTION , Switches and Harness. >	Is the neutral position switch OK?	Replace the ECM.< Refer to ENGINE CONTROL MODULE (ECM) . >	Replace the neutral position switch.
