Special Tool

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
G07910019Courtesy of SUBARU OF AMERICA, INC.
 1B022XU0 SUBARU SELECT MONITOR III KIT Used for troubleshooting the electrical system.
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
G05003978Courtesy of SUBARU OF AMERICA, INC.
 98299FA030 TEST HARNESS H Used when measuring voltage and resistance of front sub sensor and satellite safing sensor.
Fig 1: Identifying Test Harness H
G05003979Courtesy of SUBARU OF AMERICA, INC.
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
G05003980Courtesy of SUBARU OF AMERICA, INC.
 98299SA000 TEST HARNESS N Used when measuring voltage and resistance of driver's airbag module, curtain airbag module, and seat belt pretensioner.
Fig 2: Identifying Test Harness N
G05020535Courtesy of SUBARU OF AMERICA, INC.
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
G05003982Courtesy of SUBARU OF AMERICA, INC.
 98299SA020 TEST HARNESS P Used when measuring voltage and resistance of driver's airbag module and passenger's airbag module.
Fig 3: Identifying Test Harness P
G05003983Courtesy of SUBARU OF AMERICA, INC.
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
G05003984Courtesy of SUBARU OF AMERICA, INC.
 98299SA040 TEST HARNESS Q Used when measuring voltage and resistance of driver's airbag module.
Fig 4: Identifying Test Harness Q
G05003985Courtesy of SUBARU OF AMERICA, INC.
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
G05663418Courtesy of SUBARU OF AMERICA, INC.
 98299AG070 TEST HARNESS AG Used when measuring voltage and resistance of airbag control module.

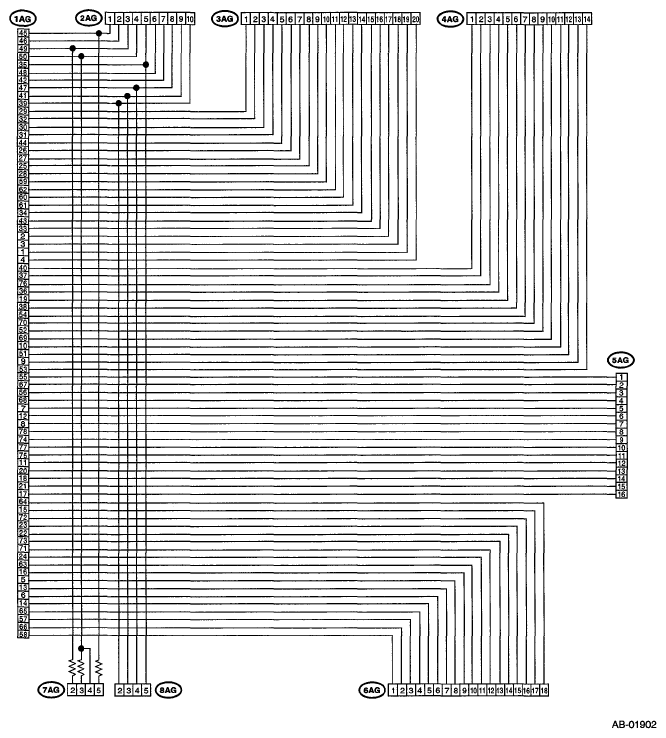

Fig 5: Test Harness AG Circuit Diagram
G05663420Courtesy of SUBARU OF AMERICA, INC.

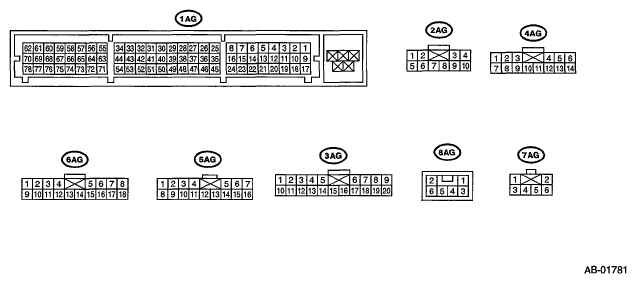

Fig 6: Identifying Test Harness AG Connector Terminals
G05663419Courtesy of SUBARU OF AMERICA, INC.
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
G05663324Courtesy of SUBARU OF AMERICA, INC.
 98299FG000 TEST HARNESS AJ Used when measuring power supply and resistance of side airbag harness.
Fig 7: Test Harness AJ Circuit Diagram
G05663325Courtesy of SUBARU OF AMERICA, INC.
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
G05003990Courtesy of SUBARU OF AMERICA, INC.
 98299AG010 TEST HARNESS V Used when measuring voltage and resistance of side airbag sensor and curtain airbag sensor.
Fig 8: Test Harness V Circuit Diagram
G05003991Courtesy of SUBARU OF AMERICA, INC.
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
G05003940Courtesy of SUBARU OF AMERICA, INC.
 98299XA000 TEST HARNESS AB Used when measuring voltage and resistance of occupant detection system.
Fig 9: Test Harness AB Circuit Diagram
G05003941Courtesy of SUBARU OF AMERICA, INC.
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
G05003996Courtesy of SUBARU OF AMERICA, INC.
 98299PA040 AIRBAG RESISTOR Used in replacement of airbag module for which resistance value is same as airbag module.
Two STs are required for diagnosis of two-stage inflator type airbag module.
Fig 10: Airbag Resistor Circuit Diagram
G05003997Courtesy of SUBARU OF AMERICA, INC.
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
G05663338Courtesy of SUBARU OF AMERICA, INC.
 98299AG090 TEST HARNESS AI
  • Used for diagnoses of side airbag sensor and curtain airbag sensor.
  • Used together with test harness V.
Fig 11: Test Harness AI Circuit Diagram
G05663339Courtesy of SUBARU OF AMERICA, INC.
