Section 57 (Air Bag System (Diagnostics)): Electrical Component Location: Location

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

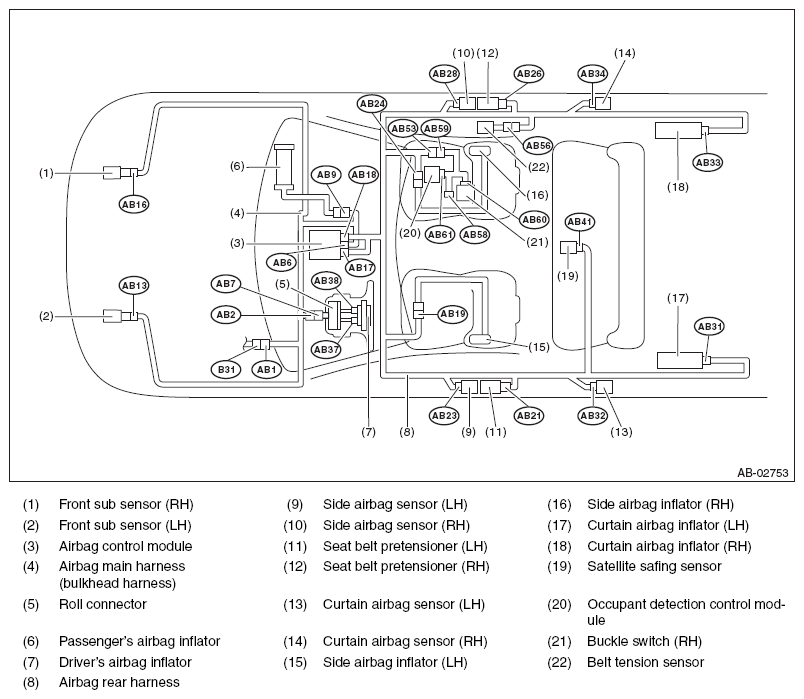

Fig 1: Airbag System Electrical Component Location
G08566103Courtesy of SUBARU OF AMERICA, INC.
Connector No. (AB1) (AB2) (AB6) (AB7) (AB9) (AB13) (AB16) (AB17) (AB18) (AB19) (AB21) (AB23)
Pin 6 4 30 4 4 2 2 24 24 4 2 4
Color (1) Yellow Yellow Yellow Yellow Yellow Yellow Yellow Yellow Yellow Black Yellow
Male/Female Male Female Female Male Female Female Female Female Female Female Female Female
(1) White or natural color
Connector No. (AB24) (AB26) (AB28) (AB31) (AB32) (AB33) (AB34) (AB37) (AB38) (AB41) (AB53) (AB56)
Pin 4 2 4 2 4 2 4 2 2 2 6 3
Color Yellow Black Yellow Black Yellow Black Yellow Orange Black Yellow Gray Brown
Male/Female Female Female Female Female Female Female Female Female Female Female Female Female
Connector No. (AB58) (AB59) (AB60) (AB61)
Pin 3 6 2 18
Color Gray Gray Yellow Black
Male/Female Female Female Female Female
