Rear Seat Belt: Installation

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

During installation, make sure that the seat belts are not twisted.
After installation, make sure that the seat belts are smoothly extended and wound.
Check that the center seat belt is assembled correctly.

Install each part in the reverse order of removal.
Tightening torque:

Refer to "COMPONENT" of "General Description". < Refer to REAR SEAT BELT , COMPONENT, General Description. >

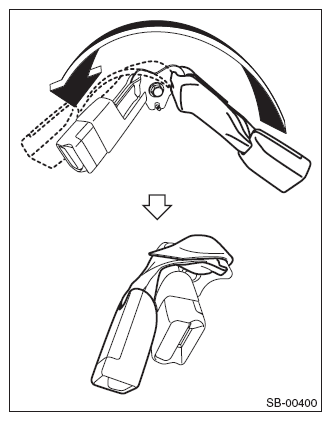

Route the seat belt as shown in the figure below, and affix with Velcro tape.
- LH side

  Fig 1: Routing Seat Belt (LH Side)
  Courtesy of SUBARU OF AMERICA, INC.
- RH side

  Fig 2: Routing Seat Belt (RH Side)
  Courtesy of SUBARU OF AMERICA, INC.
Install the seat cushion and pull out the center seat belt assembly.

Fig 3: Pulling Out Center Seat Belt Assembly
Courtesy of SUBARU OF AMERICA, INC.
