Air Mix Door Actuator: Wiring Diagram

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Air Conditioning System < Refer to appropriate SYSTEM WIRING DIAGRAM. >

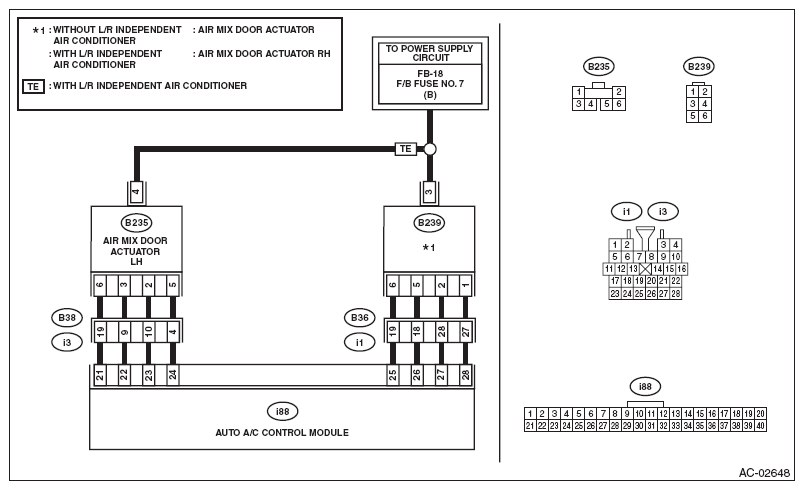

Fig 1: Air Mix Door Actuator - Wiring Diagram (Outlet Air Temperature Does Not Change)
G08565981Courtesy of SUBARU OF AMERICA, INC.
Step Check Yes No
1 CHECK POWER SUPPLY OF AIR MIX DOOR ACTUATOR.
  1. Turn the ignition switch to OFF.
  2. Disconnect the air mix door actuator connector.
  3. Turn the ignition switch to ON.
  4. Measure the voltage between the air mix door actuator connector terminal and chassis ground.

    Connector & terminal

    Without left/right independent air conditioning function

    (B239) No. 3 (+) - Chassis ground (-):

    With left/right independent air conditioning function

    (B235) No. 4 (+) - Chassis ground (-):

    (B239) No. 3 (+) - Chassis ground (-):

Is the voltage approx. 10 V or more? Go to step . Check the DC power supply circuit.
2 CHECK AIR MIX DOOR ACTUATOR.
  1. Turn the ignition switch to OFF.
  2. Measure the resistance between air mix actuator terminals using a tester.

    Connector & terminal

    Without left/right independent air conditioning function

    (B239) No. 3 - No. 1:

    (B239) No. 3 - No. 2:

    (B239) No. 3 - No. 5:

    (B239) No. 3 - No. 6:

    With left/right independent air conditioning function

    (B235) No. 4 - No. 2:

    (B235) No. 4 - No. 3:

    (B235) No. 4 - No. 5:

    (B235) No. 4 - No. 6:

    (B239) No. 3 - No. 1:

    (B239) No. 3 - No. 2:

    (B239) No. 3 - No. 5:

    (B239) No. 3 - No. 6:

Is the resistance 80 - 100 Ω? Go to step . Replace the air mix door actuator.
3 CHECK HARNESS BETWEEN AUTO A/C CONTROL MODULE AND AIR MIX DOOR ACTUATOR.
  1. Disconnect the auto A/C control module connector.
  2. Measure the resistance between auto A/C control module and air mix door actuator connector.

    Connector & terminal

    Without left/right independent air conditioning function

    (B239) No. 1 - (i88) No. 28:

    (B239) No. 2 - (i88) No. 27:

    (B239) No. 5 - (i88) No. 26:

    (B239) No. 6 - (i88) No. 25:

    With left/right independent air conditioning function

    (B235) No. 2 - (i88) No. 23:

    (B235) No. 3 - (i88) No. 22:

    (B235) No. 5 - (i88) No. 24:

    (B235) No. 6 - (i88) No. 21:

    (B239) No. 1 - (i88) No. 28:

    (B239) No. 2 - (i88) No. 27:

    (B239) No. 5 - (i88) No. 26:

    (B239) No. 6 - (i88) No. 25:

Is the resistance less than 1 Ω? Go to step . Repair the harness between auto A/C control module and air mix door actuator.
4 CHECK FOR POOR CONTACT.
Check poor contact of auto A/C control module and connector.
Is there poor contact of connector? Repair the connector. Replace the auto A/C control module. < Refer to REMOVAL , Control Unit (Auto A/C Model). >
