Diagnostic Chart for Self-Diagnosis: Operation: Notes

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Without left/right independent air conditioning function

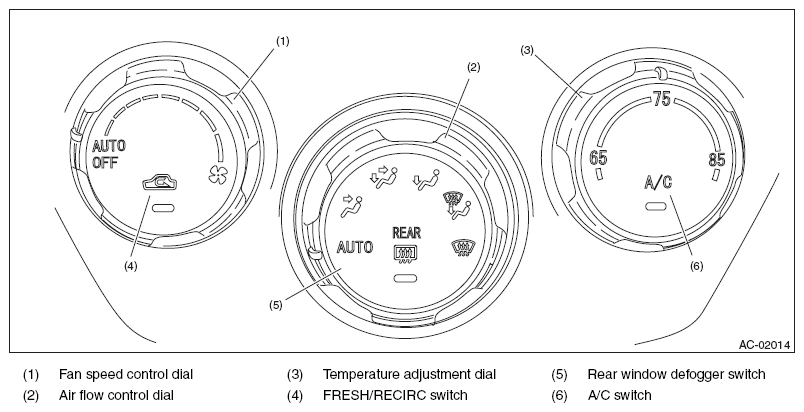

Fig 1: Air Conditioning Function Switches (Without Left/Right Independent)
Courtesy of SUBARU OF AMERICA, INC.
With left/right independent air conditioning function

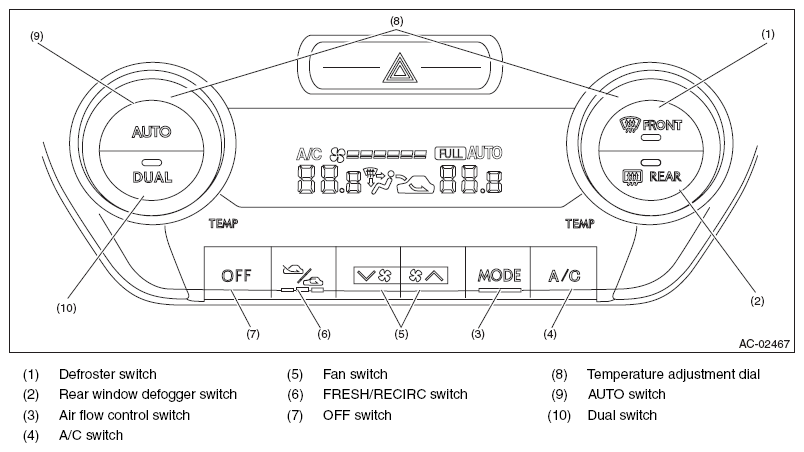

Fig 2: Air Conditioning Function Switches (With Left/Right Independent)
Courtesy of SUBARU OF AMERICA, INC.
