Components With Torque Specifications

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

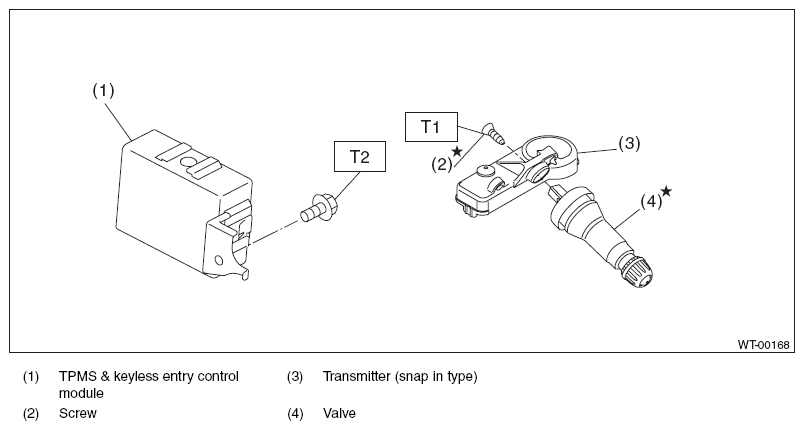

Fig 1: Identifying TPMS & Keyless Entry Control Module, Transmitter, Valve And Screw Components
G08571956Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 1.4 (0.14, 1.0)

T2: 13 (1.33, 9.6)
