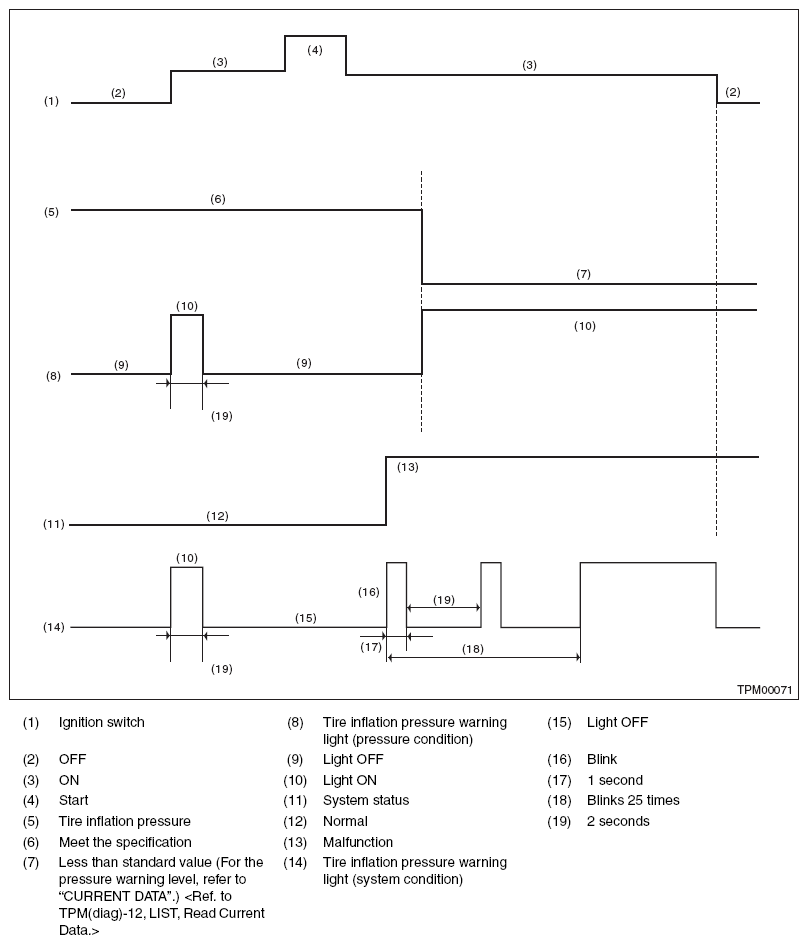

Tire Pressure Warning Light / Trouble Indicator Light Illumination Pattern: Inspection
WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
- When the tire pressure warning light does not illuminate in accordance with this illumination pattern, there must be an electrical malfunction.
- If the tire pressure warning light does not go off, check the TPMS & keyless entry control module/warning light circuit and the combination meter circuit. < Refer to
TIRE PRESSURE WARNING LIGHT DOES NOT COME OFF , Tire Pressure Warning Light / Trouble Indicator Light Illumination Pattern. >NOTE: If the problem is fixed while driving at approximately 40 km/h (25 MPH) after the tire pressure warning light blinks/lights, the warning light goes out and the tire pressure monitor system operates normally. (If there is a decrease in tire pressure, or a malfunction of the system, the malfunction history is displayed.)
