Section 5 (Tire Pressure Monitoring System (TPMS) (Diagnostics)): Electrical Component Location: Location

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

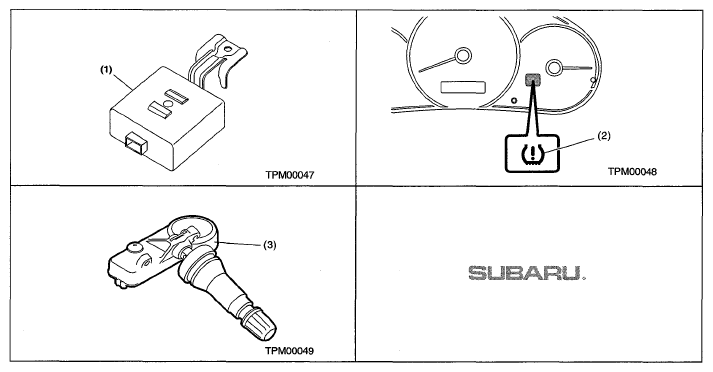

Fig 1: Identifying TPMS & Keyless Entry Control Module, Tire Pressure Warning Light And Snap-In Type Transmitter (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

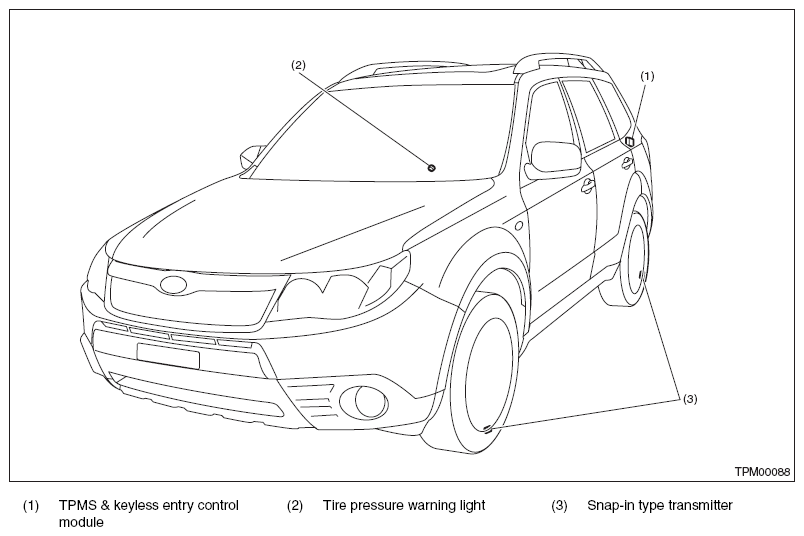

Fig 2: Identifying TPMS & Keyless Entry Control Module, Tire Pressure Warning Light And Snap-In Type Transmitter (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
