Oil Pressure System: Wiring Diagram

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

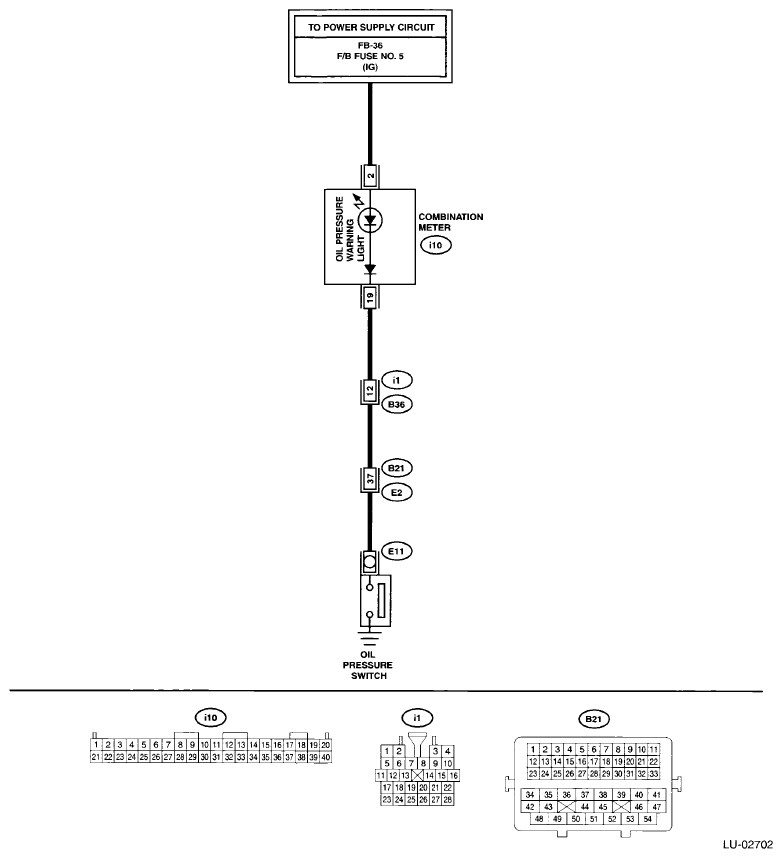

Fig 1: Identifying Oil Pressure Warning Light System Wiring Diagram
G07679918Courtesy of SUBARU OF AMERICA, INC.
