LH Side

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Remove the collector cover.
Remove the battery. < Refer to REMOVAL , Battery. >
Disconnect the air duct from the secondary air pump.
Remove the bolts that secure the air duct to the rocker cover LH, and lift the air duct.

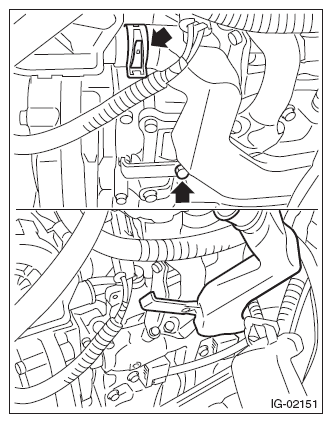

Fig 1: Locating Air Duct And Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from ignition coil.
Remove the ignition coil.
NOTE: Turn #4 ignition coil by 180° to remove it.

Fig 2: Locating Ignition Coil Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the spark plug with a spark plug socket.
