Secondary Air Pump: Removal

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the collector cover.
  2. Disconnect the ground cable from battery.
    Fig 1: Disconnecting/Connecting Battery Ground Cable
    G06336085Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the clip (A) which holds the harness on the harness stay and remove the bolt (B) which holds the secondary air pump on the vehicle.
    Fig 2: Identifying Harness Stay Clip And Bolt
    G05954997Courtesy of SUBARU OF AMERICA, INC.

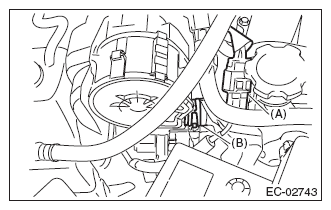

  4. Disconnect the connector (A) and air duct (B) from secondary air pump and remove the secondary air pump.
    Fig 3: Identifying Connector And Air Duct
    G08540129Courtesy of SUBARU OF AMERICA, INC.
