Secondary Air Combination Valve LH

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal.

NOTE: Use a new gasket.

Tightening torque:

T1: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

T2: 9 N.m (0.9 kgf-m, 6.6 ft-lb)

T3: 19 N.m (1.9 kgf-m, 14.0 ft-lb)

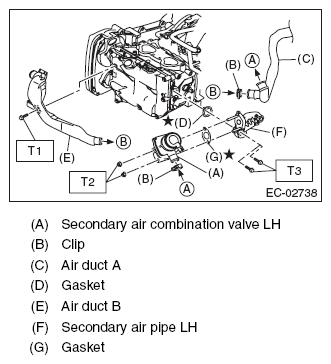

Fig 1: Identifying Secondary Air Combination Valve Components (Lh) With Tightening Torque & Sequence

Courtesy of SUBARU OF AMERICA, INC.
