Check Switching Valve

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Check the resistance between switching valve terminals.

Fig 1: Checking Resistance Between Switching Valve Terminals

Courtesy of SUBARU OF AMERICA, INC.

Terminal No.	Standard
1 and 5	27⁺³_-2 Ω (when 20°C (68°F))
1 and 5	31±4 Ω (when 60°C (140°F))

Disconnect the drain tube from the leak check valve assembly.

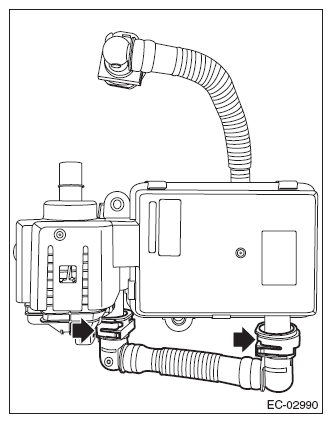

Fig 2: Locating Quick Connector
Courtesy of SUBARU OF AMERICA, INC.
Check that air does not come out from (B) when air is blown into (A).

Fig 3: Checking Air Does Not Come Out From (B) When Air Blown Into (A)
Courtesy of SUBARU OF AMERICA, INC.
Connect the battery positive terminal to the terminal No. 5 and the battery negative terminal to the terminal No. 1. Check that air is discharged from (B), when supplying air to (A).

Fig 4: Connecting Battery Positive Terminal To Terminal No. 5 And Battery Negative Terminal To Terminal No. 1
Courtesy of SUBARU OF AMERICA, INC.
