Center And Rear Exhaust Pipe, And Muffler

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

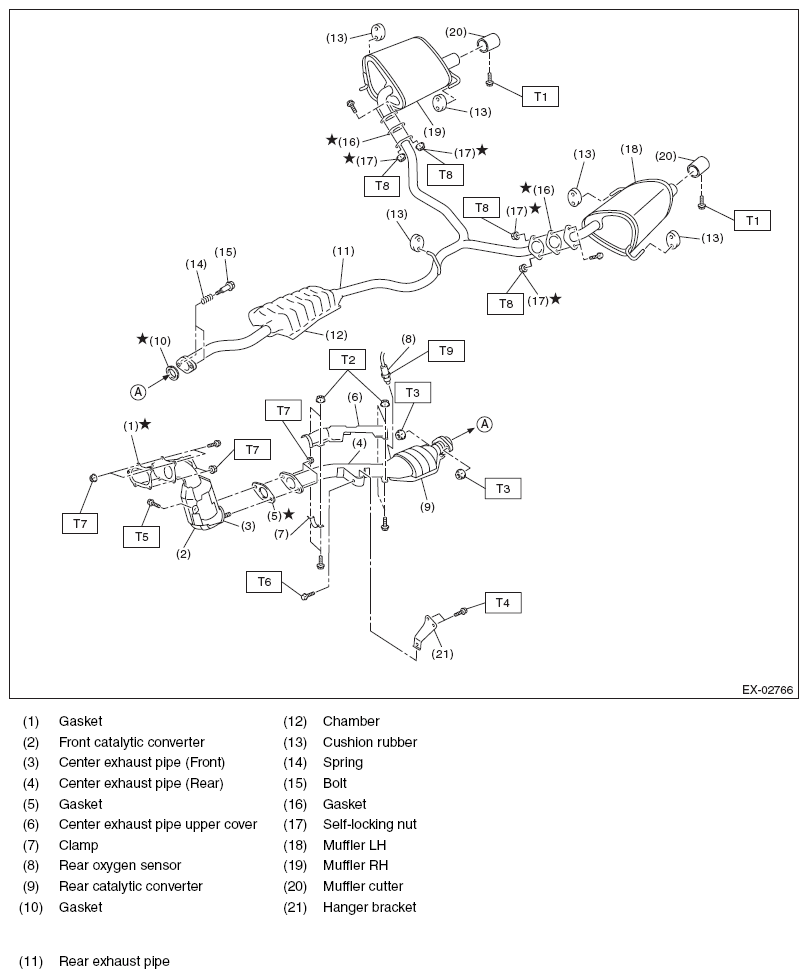

Fig 1: Center And Rear Exhaust Pipe And Muffler Replacement Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 13 (1.3, 9.6)

T3: 18 (1.8, 13.3)

T4: 23 (2.3, 17.0)

T5: 30 (3.1, 22.1)

T6: 35 (3.6, 25.8)

T7: 42.5 (4.3, 31.3)

T8: 48 (4.9, 35.4)

T9: < Refer to INSTALLATION , Rear Oxygen Sensor. >
