Transfer Case

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Remove the reverse check sleeve assembly. < Refer to REMOVAL , Reverse Check Sleeve. >
Remove the oil guide.

Fig 1: Identifying Reverse Check Sleeve Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the oil seal.
Set ST1, ST2 and transfer case to a press.
NOTE:
- Set the ST2 under ST1.
- Set the transfer case so that the hole for shifter arm is positioned vertically.
ST1 498267300 CYLINDER HEAD TABLE

ST2 498267200 CYLINDER HEAD TABLE

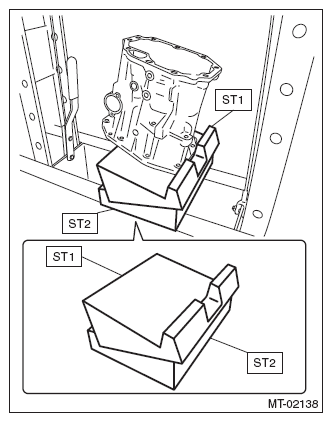

Fig 2: Setting ST1, ST2 And Transfer Case To Press
Courtesy of SUBARU OF AMERICA, INC.
Using the round bar with diameter of 22 mm (0.87 in) or 23 mm (0.91 in), remove the roller bearing.

Fig 3: Removing Roller Bearing Using Round Bar
Courtesy of SUBARU OF AMERICA, INC.
