Back-Up Light Switch & Neutral Position Switch

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Install the back-up light switch & neutral position switch with the harness.
Tightening torque:

32.3 N.m (3.3 kgf-m, 23.8 ft-lb)

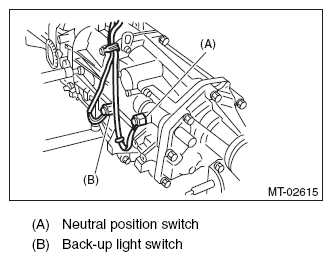

Fig 1: Identifying Neutral Position Switch And Back-Up Light Switch
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Connect the connectors of back-up light switch & neutral position switch.

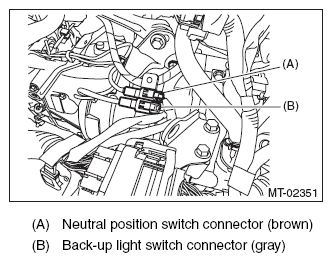

Fig 2: Identifying Neutral Position Switch Connector (Brown) And Back-Up Light Switch Connector (gray)
Courtesy of SUBARU OF AMERICA, INC.
Install the air intake boot. < Refer to INSTALLATION , Air Intake Boot. >
Connect the battery ground terminal.
