Protector Tape: Installation

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

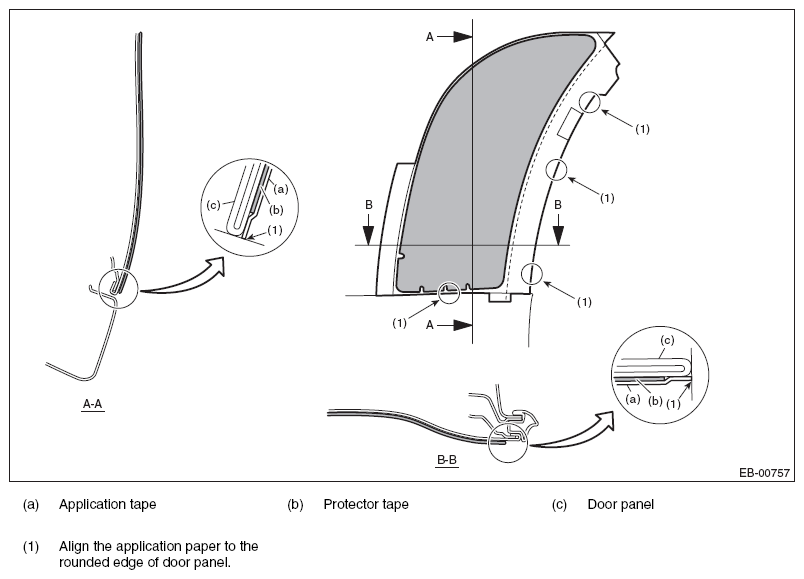

Fig 1: Identifying Protector Tape Installation Sections
G08566879Courtesy of SUBARU OF AMERICA, INC.
  1. Clean the area around applying position to remove any foreign objects on body.
  2. Detach the backing paper and apply the protector tape after positioning it correctly.
  3. Detach the backing papers, and moisten the applying area and the backside of protector tape by spraying liquid (mild detergent solution at 3% concentration).
  4. Apply the protector tape to the vehicle body.
    CAUTION: Remove the water or air bubbles out of the protector tape by using the plastic or rubber spatula.
  5. Remove the application tape.
